Find the right hub centric rings
Over 200 sizes · from $19.99 / set
Enter measurements
📏 Measuring guidemm
mm
Enter measurements → results appear here
⚙️

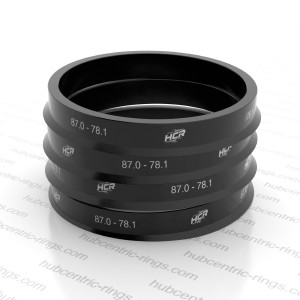

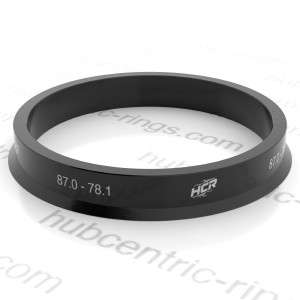

Hub centric rings 87.0 - 78.1 mm
Wheel center bore
87.0 mm
Car hub
78.1 mm
Height
10 mm
Material
Plastic
Edge
~3 mm
Package size
4 pcs (1 set)
This size is currently not in stock.
🔧 Installation guide
1
Clean the hub
Clean the car hub and wheel center bore from dirt and rust. A dry, clean surface ensures a tight fit.
2
Place the ring on the hub
Press the hub centric ring onto the car hub. It should fit snugly — not too loose and not forced.
3
Mount the wheel
Lift the wheel into place. The wheel center bore sits on top of the hub centric ring, centering the wheel precisely on the hub.
4
Tighten the bolts
Tighten the wheel bolts/nuts in a cross pattern to the correct torque. The hub centric ring stays between the wheel and hub.
📏 How do I know the right size?
Measure your wheel center bore diameter (87.0 mm) and your car hub diameter (78.1 mm). See measuring guide →
📦 Shipping
Affordable letter delivery. In-stock products ship within 24h of order.
💬 Need help choosing?
Contact us: info@hubcentric-rings.com. We help you find the right size!
